Accessories
HIGH RIGIDITY BELT SPINDLE
This PROSTAR is equipped with BT50 4000rpm/min high rigidity belt spindle and can also choose 6000rpm/min high-speed direct-connected spindle. It has high precision, and the surface finish of the finished workpiece is very good. The short nose spindle presents outstanding rigidity. It also may increase efficiency while lowering tool wear.
High-Quality Components
Our spindles are equipped with high-precision ball bearings, which ensure reliable operational safety, smooth running and long service life.
Optimized Lubrication
Permanent grease lubrication and oil-air lubrication are optimally matched to the respective application. Our lubrications unit ensure trouble free operation even at the higher RPM.
SIEMENS Integration
Our spindles are operated by a SIEMENS drives before installation on the machine with all functions.

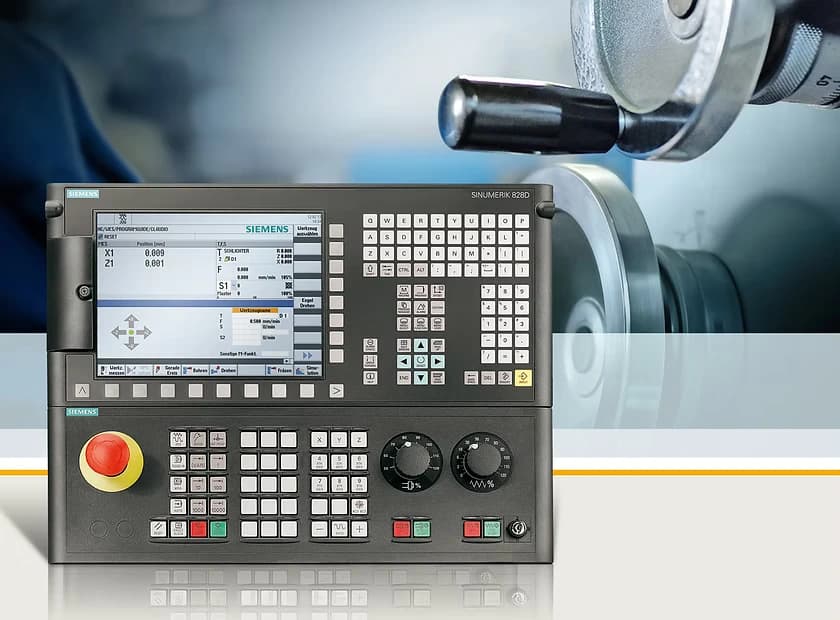

Siemens SINUMERIK 828 Controller
The powerhouse in the compact CNC class
With its unique CNC performance, our SINUMERIK 828D control sets productivity benchmarks when it comes to milling and turning on standard machines as well as functions to simply automate grinding machines.
Key Features
High-Resolution Display
10.4" TFT color display with rugged and user-friendly interface
Advanced Processing
Up to 4 axes/spindles and 2 auxiliary axes for precise control
SIMATIC Integration
S7-200-based PLC for seamless automation
Linear Motion Mechanism
Precision ground ball screws
Precision ground ball screws provide high positioning accuracy and repeatability, smooth movement and long service life. These highly efficient ball screws are a perfect solution for Vertical machining centers and machines all 3 axes fitted with this ball screws.

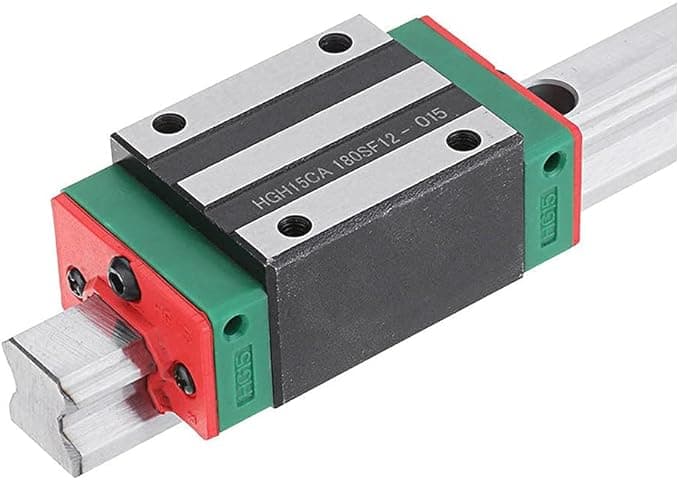

Linear guide-ways
Linear guide-ways provides linear motion by re-circulating rolling elements between a profiled rail and a bearing block. The coefficient of friction on a linear guide-way is only 1/50 compared to a traditional slide.
O-geometry
Precision engineered geometric design
2-point contact
Enhanced stability and load distribution
Optimized runway geometry
Improved motion accuracy
Trapezoidal rail profile
Superior load bearing capacity
Complete sealing
Protection against contamination
Versatile lubrication
Multiple lubrication options
Through-hardened carriages
Extended service life
Exchangeability
Easy maintenance and replacement
Twin cylinder hydraulic system
All our machines are equipped with twin cylinder hydraulic counter balance system for Z-axis movement and it will give smooth vertical motion for the machine
Electronics Equipments

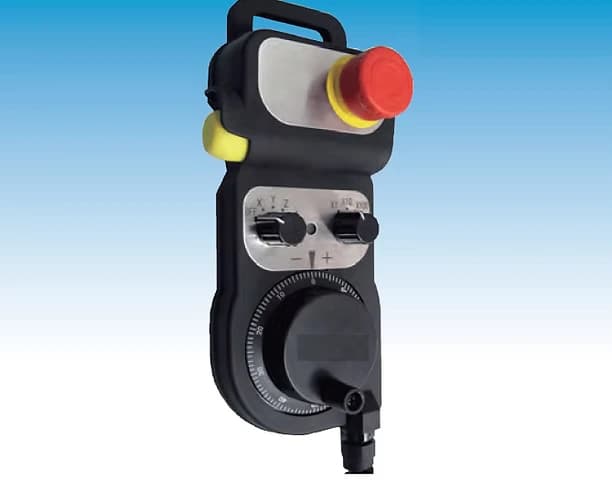

5 Axis MPG Hand Wheel
Precision control for multi-axis operation
AC for Electrical Cabinet
Temperature-controlled environment for electrical components

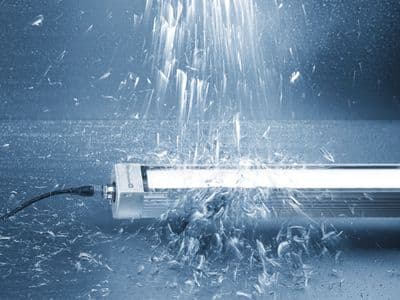

LED Machine Lamps
Energy-efficient illumination for workspace
Chip Management Equipments
CHIP CLEARING
Re-cutting chips results in accelerated tool wear, poor surface finishes, and – at worst – scrap. To effectively remove chips from the cutting area, we offer a host of high-productivity solutions, like Through-Spindle Coolant, Automatic chip conveyor, Screw conveyor, and more.
- Through-Spindle Coolant System

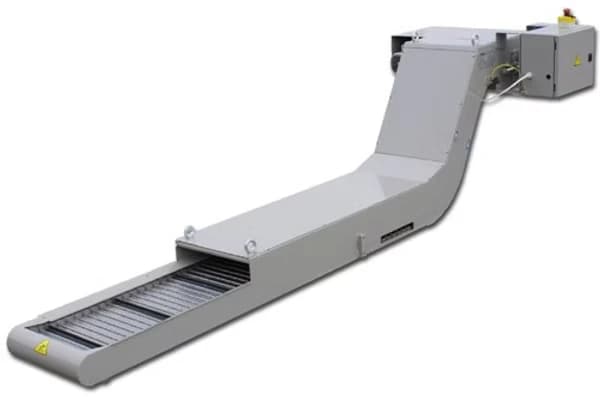

- Automatic Chip Conveyor

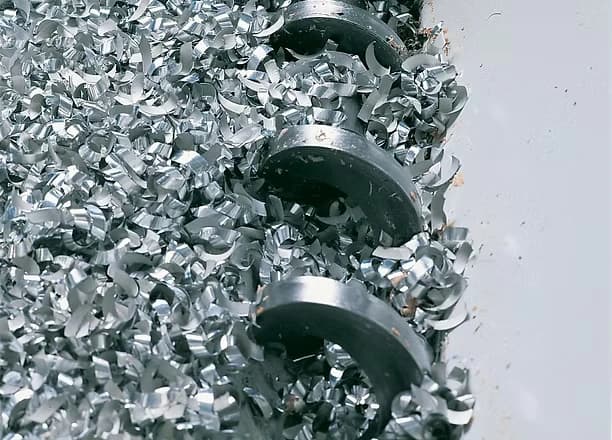

- Screw Conveyor Technology
