Machine Alignment & Inspection
Constant computer-hardware and software developments have resulted in enhanced requirements for the dimensional accuracy of products. An accurate product reflects the geometrical accuracy of the CNC machine-tool. A quick accuracy test of a CNC machine-tool can be performed with the Ball bar device calibration and parameter correction on the CNC controller can be done with a test-result analysis from the very accurate laser device. The whole machine test and laser calibration according to standards ISO, DIN, JIS, CNS. Straightness, perpendicularity, flatness by laser gauging and circularity by ball-bar test.
Axis alignment with granite | Machine assembly using spirit levels | Laser alignment during trail run |
---|

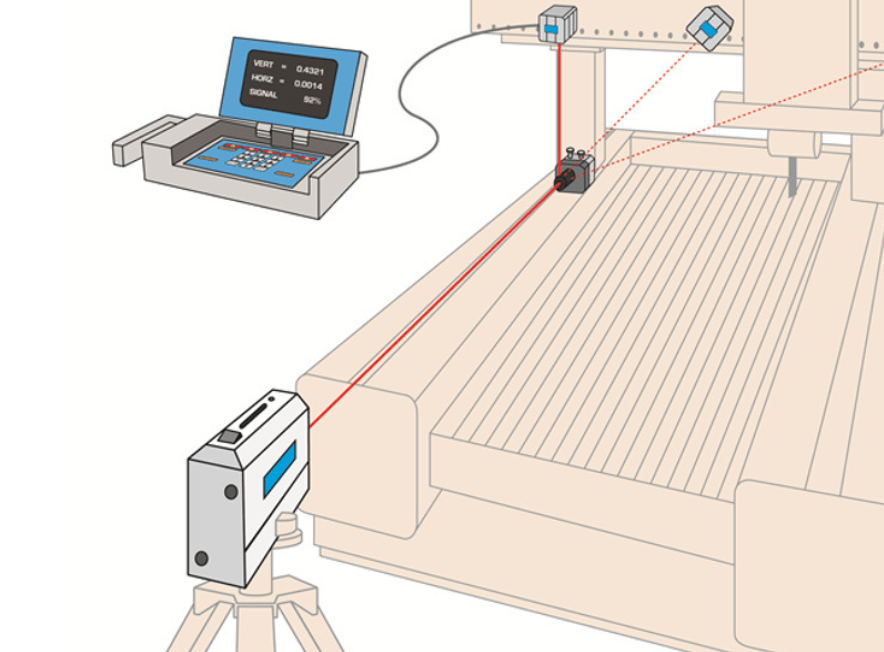

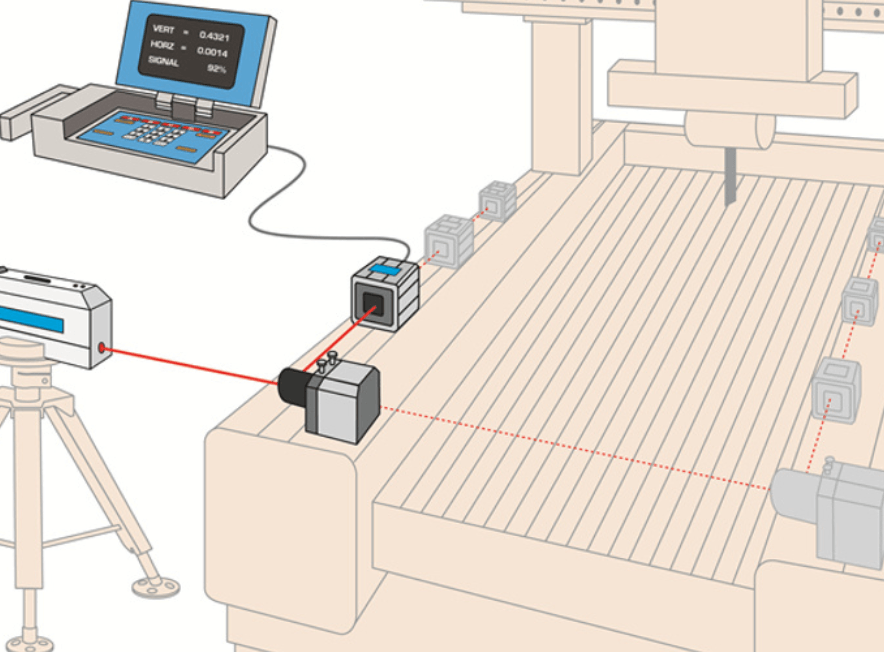

Laser Inspection

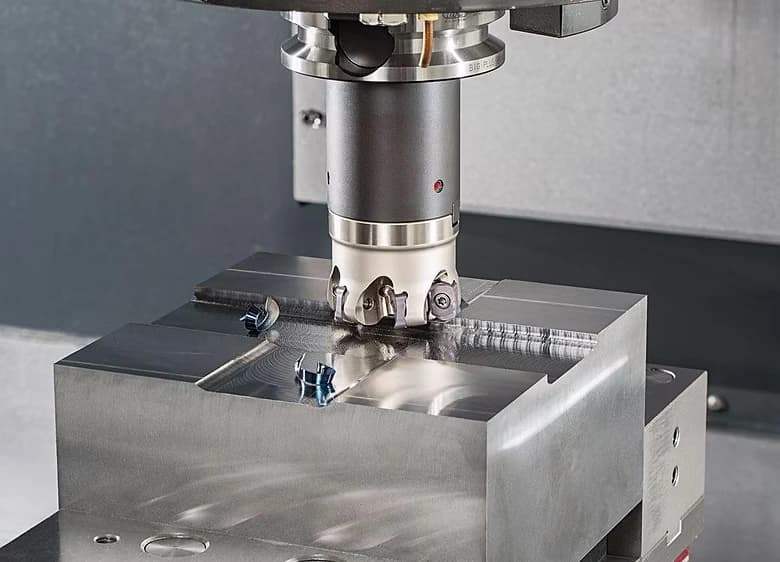

Trail Run Test
Cutter DIA : 160mm
Spindle RPM : 2000
Feed rate : 1m/min
DOC : 2mm
Spindle load : 50%
Table load : 20%
Drill DIA : 40mm
Spindle RPM : 200
Feed rate : 4m/min
Axis load : 70%
Drill DIA : 44mm
Spindle RPM : 600
Feed rate : 1m/min
Axis load : 80%
TAP Size : M10 x 1.5p
TAP Size : M36 x 4.0p
