Industrial Equipment Showcase

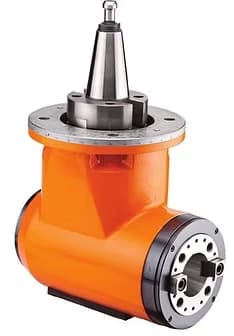

Manual 90° Milling Head (MHM)
Precision manual milling head for 90° operations
Specifications:
- Manual operation
- 90° capability
- High precision

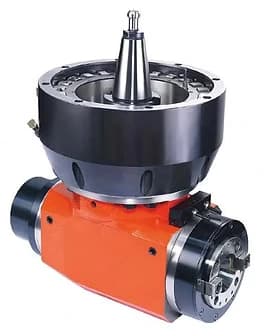

Auto 90° Milling Head (MHA)
Automated milling head for enhanced productivity
Specifications:
- Automatic operation
- 90° capability
- Enhanced efficiency

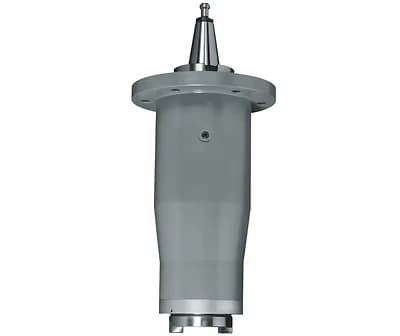

Manual Extension Milling Head (MHME)
Extended reach manual milling solution
Specifications:
- 500mm extension
- Manual control
- Versatile application

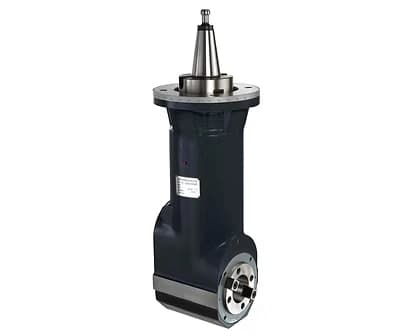

Manual 90° Extension Milling Head (MHMED)
Combined extension and 90° manual milling head
Specifications:
- 90° operation
- Extended reach
- Manual precision

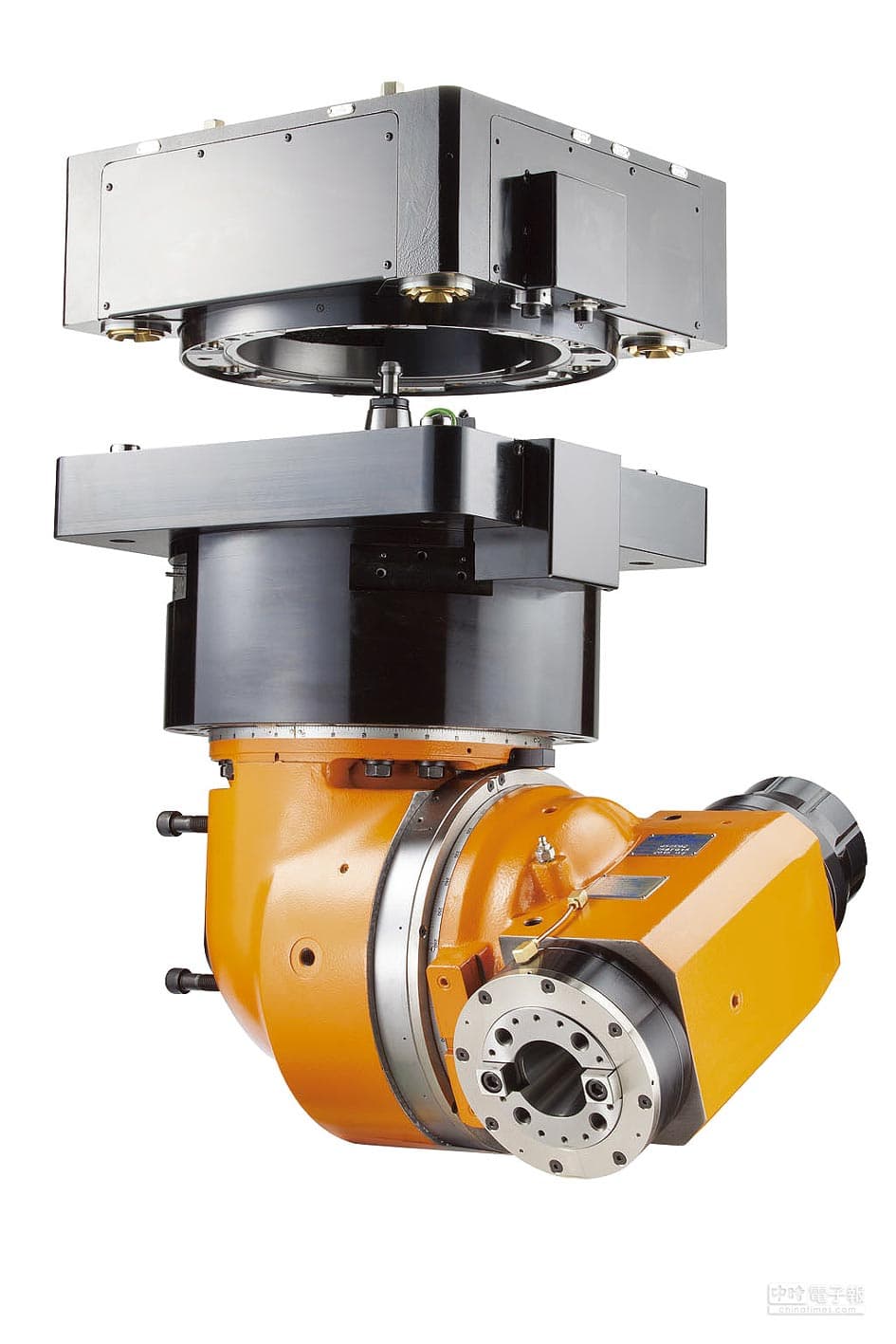

5 Axis Milling Heads
C47
| L x W x H (mm) | 650 x 450 x 1200 |
| Weight (kg) | 800 |
| Spindle Taper | HSK A63 |
| Max. Speed (rpm) | 18,000 |
| Bearing Lubrication | Oil-Air |
| Power (kW) | 29.5kW S1 Cont. (37kW S6 40%) |
| Torque | 75.4Nm S1 Cont. (88.3Nm S6 40%) |
| Encoder | ERN2480-600 |
| External Coolant | 4 nozzles standard |
| Cooling | Water with additives |
C56
| L x W x H (mm) | 950 x 750 x 1500 |
| Weight (kg) | 1200 |
| Spindle Taper | HSK A63 |
| Max. Speed (rpm) | 18,000 |
| Bearing Lubrication | Oil-Air |
| Power (kW) | 29.5kW S1 Cont. (37kW S6 40%) |
| Torque | 75.4Nm S1 Cont. (88.3Nm S6 40%) |
| Encoder | ERN2480-600 |
| External Coolant | 4 nozzles standard |
| Cooling | Water with additives |
