Double Column Machining Center
Discover our comprehensive range of high-precision machining centers, designed for superior performance and reliability.

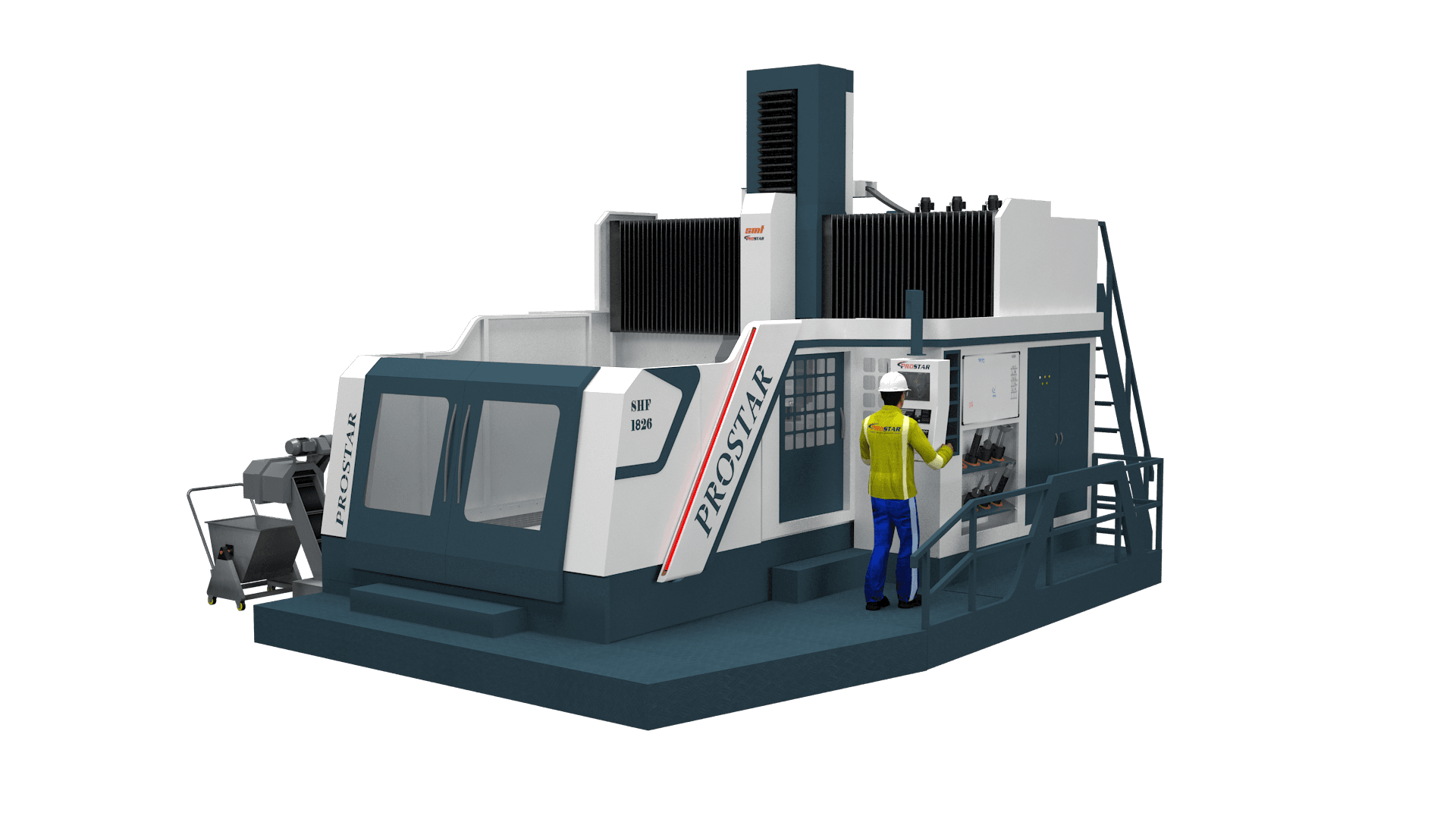

SHF SERIES
Double Column Machining Centers
Core products of PROSTAR with full range of specification and customizable solutions. These machining centres become best-selling products and meet all requirements from Accuracy, rapid feed rate, high efficiency to heavy duty.
- X Axis: 2200 mm - 7200 mm
- Y Axis: 2300 mm - 4900 mm
- Z Axis: 600 mm - 2000 mm
- Between Columns: 1700 mm - 4300 mm

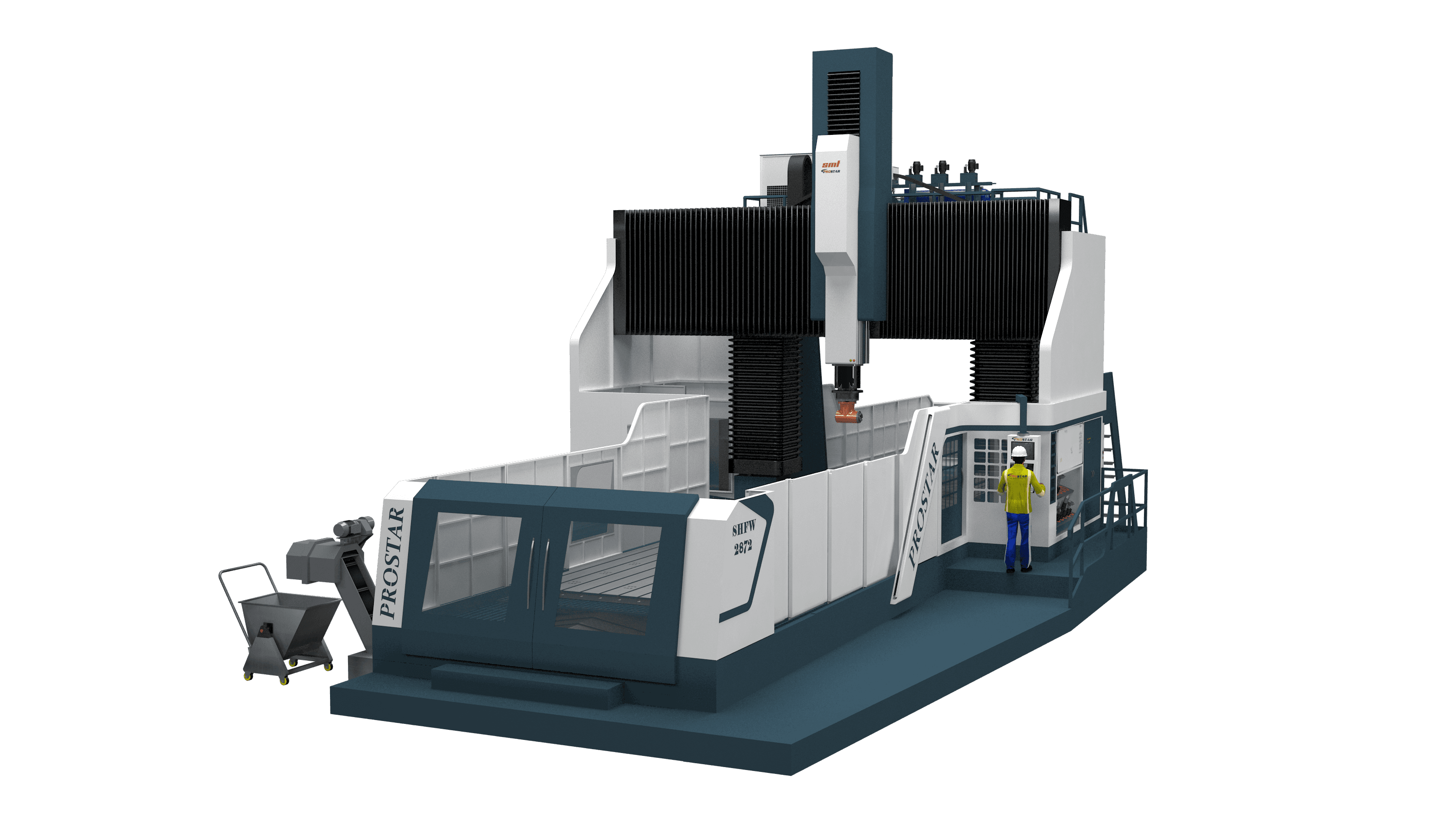

SHFW SERIES
High Load Capacity Machines
Our SHFW series machines are characterised by their high load capacity when absorbing machining forces. This machines are designed for the high loads during the machining of large parts.
- X Axis: 4200 mm - 7200 mm
- Y Axis: 3200 mm - 4900 mm
- Z Axis: 1000 mm - 2000 mm
- Between Columns: 2600 mm - 4300 mm
SHM SERIES
Moving Double Column CNC Centers
The SHMW Series of Moving Double Column CNC machining centers were created due to customer requests—customers who already knew the value of PROSTAR and needed larger machines for aerospace and energy parts.
- X Axis: 3000 mm - 30000 mm
- Y Axis: 2000 mm - 8000 mm
- Z Axis: 1000 mm - 2000 mm
- Between Columns: 2800 mm - 8800 mm
SHMW SERIES
Moving Cross Rail CNC Centers
The SHMW Series of Moving Double Column with Moving Cross Rail CNC machining centers were created for aerospace and energy parts. Our 3-meter, 4-meter, and 6-meter VMCs are the biggest machine tools available.
- X Axis: 3000 mm - 30000 mm
- Y Axis: 3000 mm - 8000 mm
- Z Axis: 1000 mm - 2000 mm
- W Axis: 1000 mm - 2000 mm
- Between Columns: 3800 mm - 5800 mm

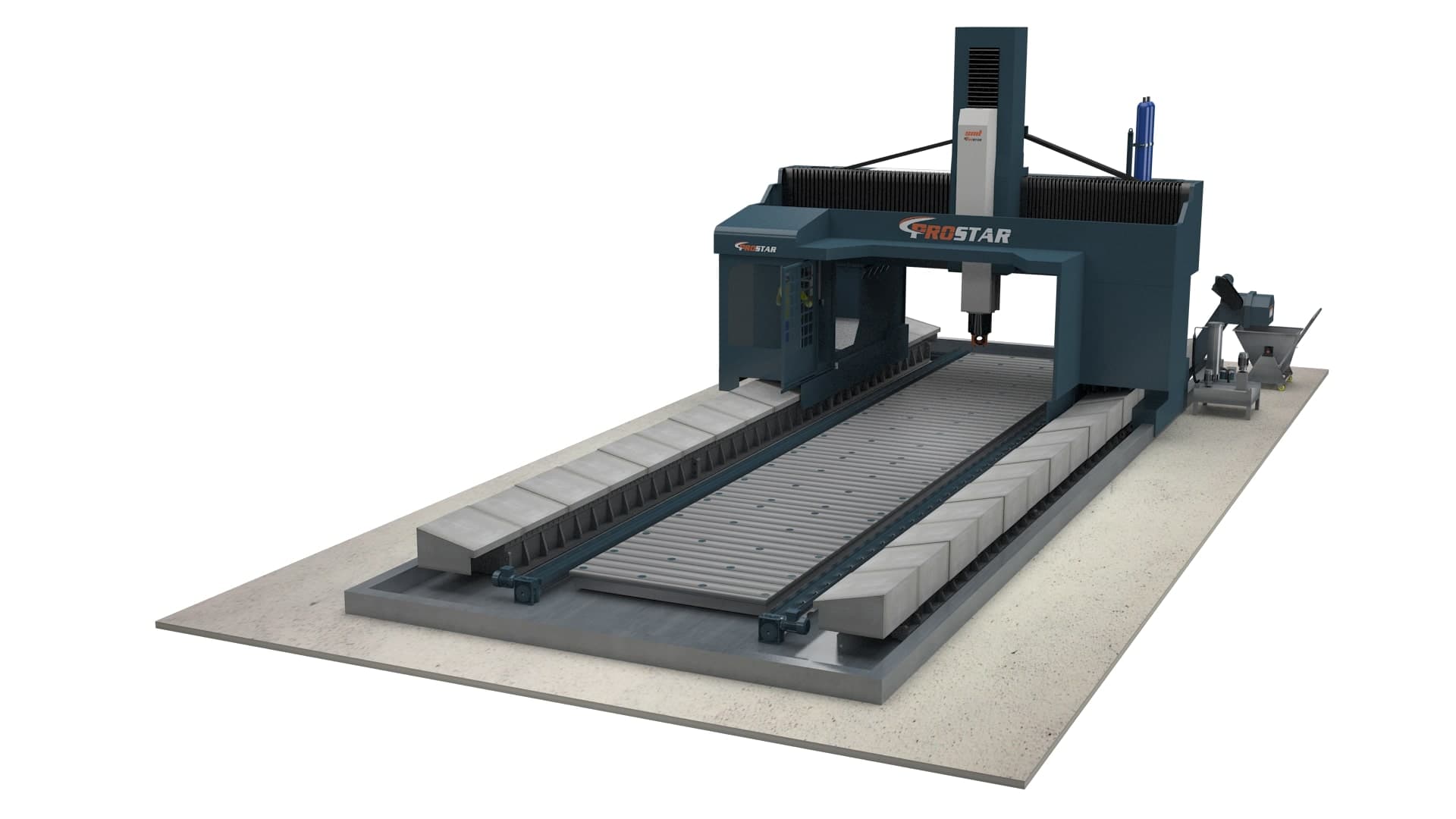

SHG SERIES
Gantry Type Machining Center
SHG Series Gantry Type Machining Center, provided excellent 5-axis simultaneous accuracy performance for 5-axis machining in mold cutting, highly precise contour finishing, milling, drilling, and tapping.
- X Axis: 3000 mm - 30000 mm
- Y Axis: 2000 mm - 8000 mm
- Z Axis: 1000 mm - 2000 mm
- Between Columns: 2800 mm - 8800 mm
